深圳市鑫利莱绝缘材料有限公司

igh heat resistant Glass/Epoxy laminates for Solder pallet：

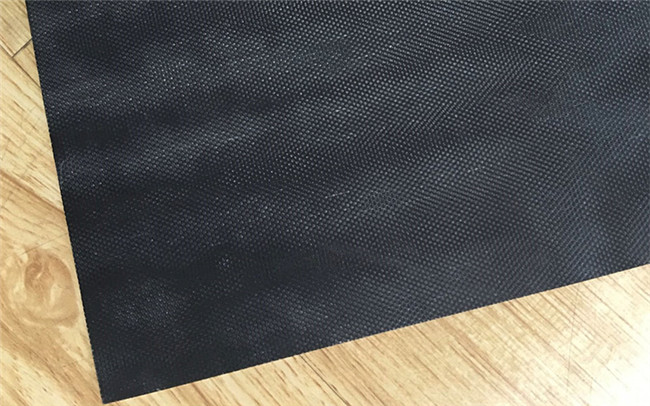

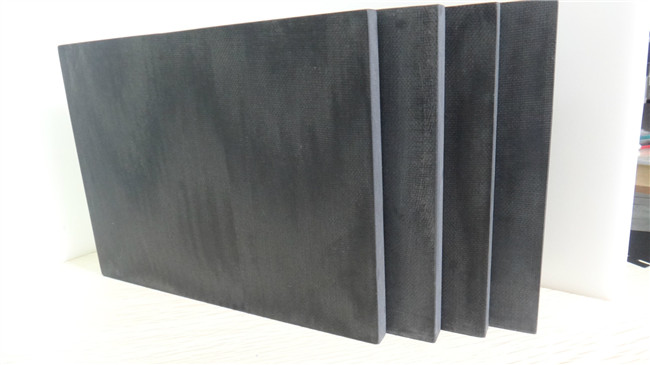

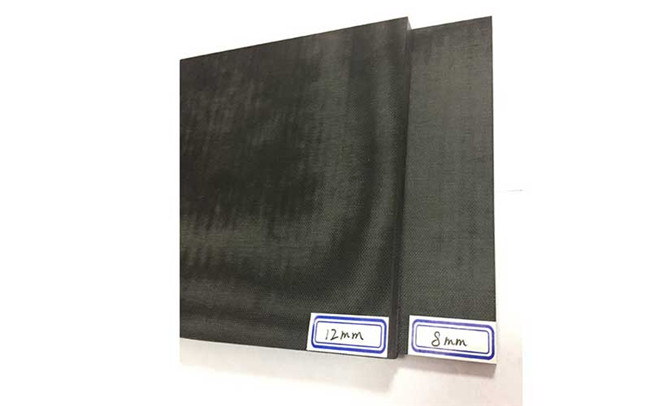

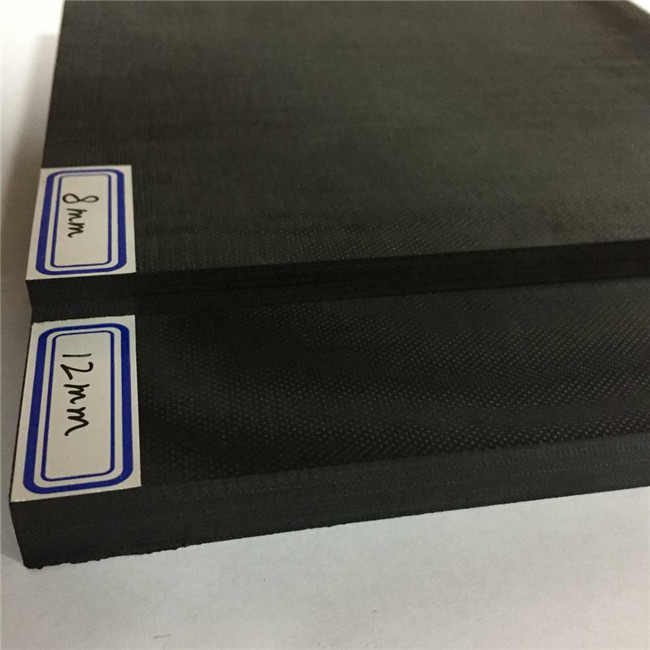

高级防静电石无铅是由电子级进口玻璃布与PI等耐高温复合树脂、纳米分散材料等制成的优异复合材料，与进口合成石综合竞比具有更好的性价比优势。在265-300℃的间接高温环境中具有极好的尺寸稳定性、高抗腐性、低导热性、防静电性、不易燃性。作为载具适合SMT波峰焊、回流焊工艺中的焊接保护载具之用。使用中易加工、不破裂、不起泡、不脱层、抗变形、不刺痒人体，可按使用规格任意裁切钻孔开槽。

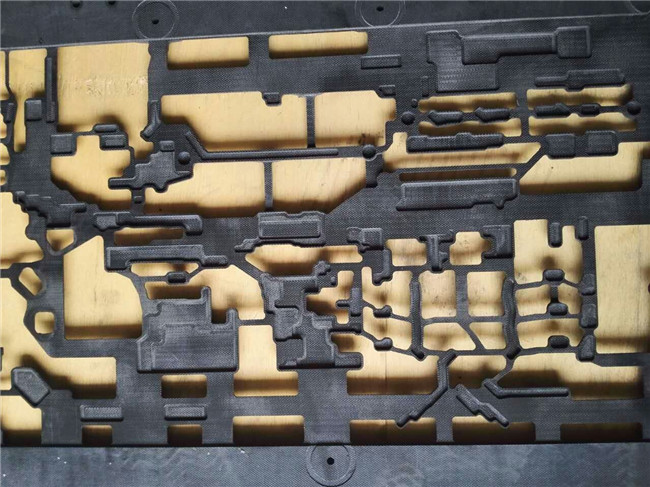

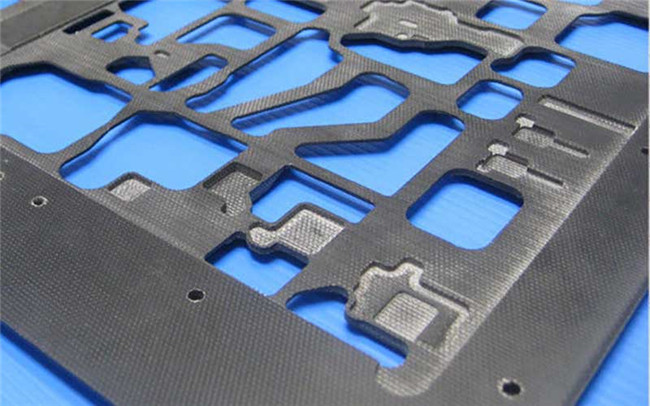

Lead-free Composite Sheets are composite material made of imported glass fiber,PI temperature resistance composite resin and nanometer dispersed material. Price is more competitive than imported products. In the indirect high temperature environment of 265-300℃, it has good dimensional stability, corrosion resistance, low thermal conductivity, anti-static and non-flammability. Suitable for soldering protection in wave soldering and reflow soldering. Easy to process, no cracking, no peeling, no burr and no irritation to human body. Customers can freely design the carriers according to their specific needs.

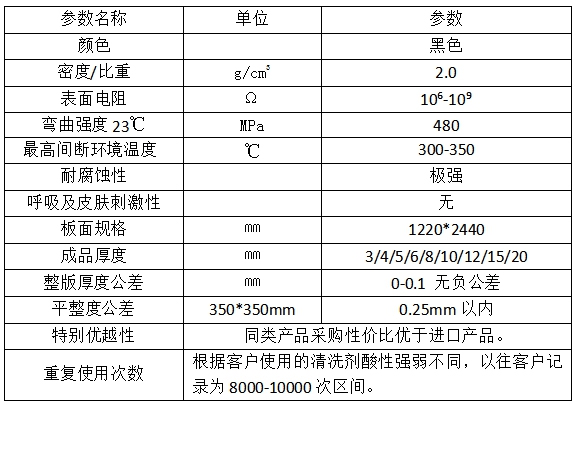

产品技术性能参数
