深圳市鑫利莱绝缘材料有限公司

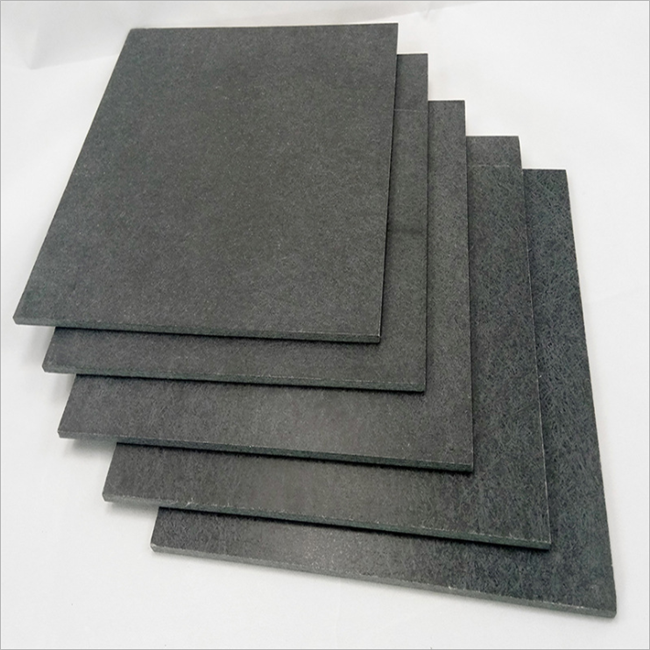

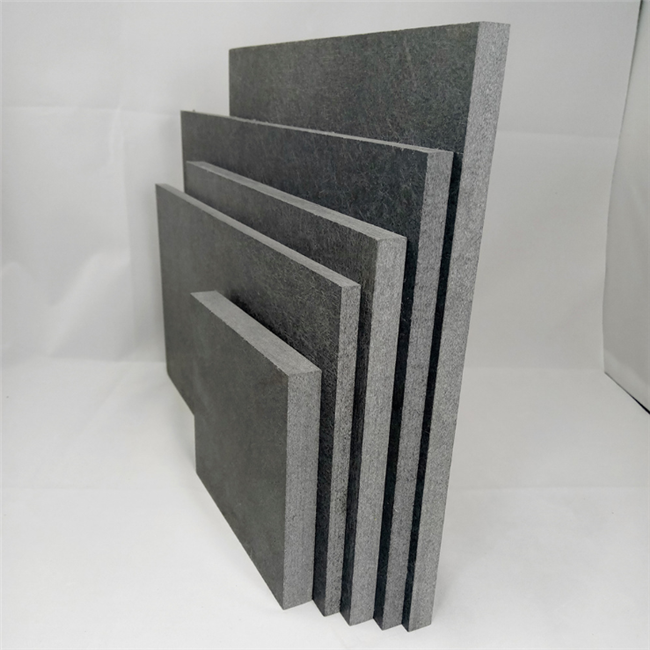

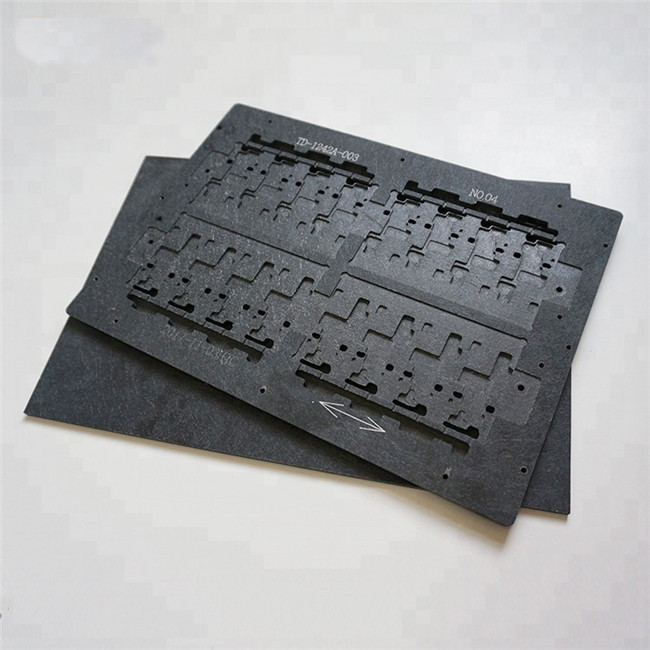

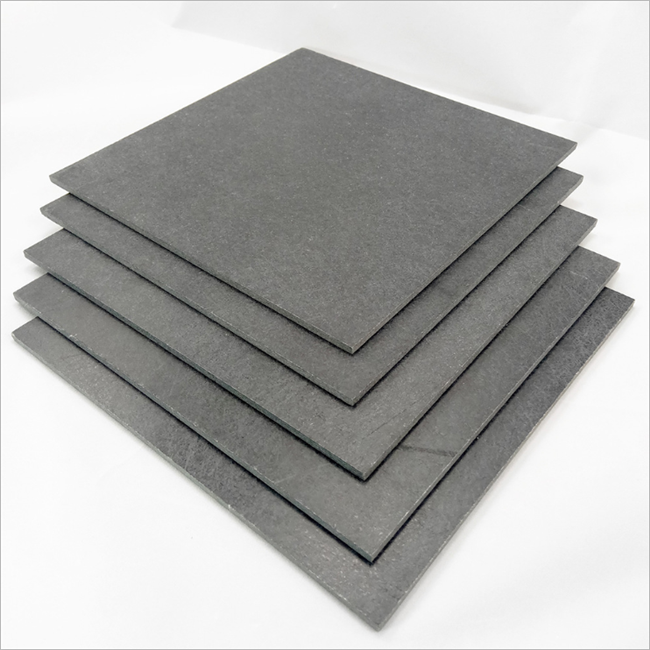

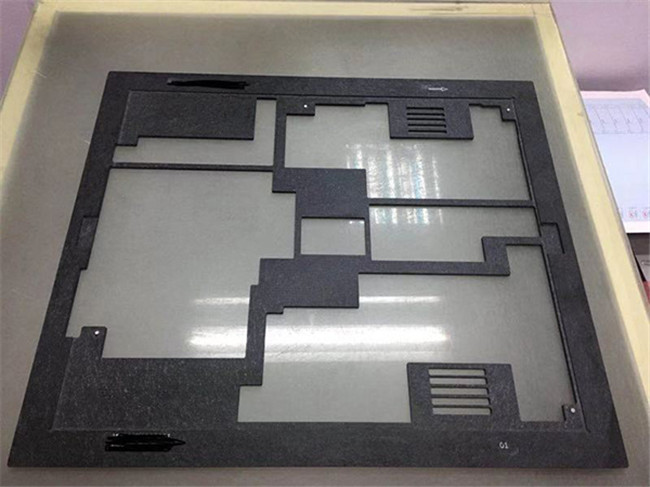

防静电合成石是由玻璃纤维和环氧树脂等制成的复合材料。在260-280℃的间接高温环境中具有较好的尺寸稳定性、耐腐蚀性、低导热性、防静电性、不易燃性。适合SMT波峰焊工艺中的焊接保护载具之用。使用中易加工、不破裂、不脱层、不起毛、不刺激人体，可按使用规格任意裁切钻孔开槽，易于在CNC机床的快速加工和避免过度损伤刀具。我们是国内具备全自动生产线的制造企业，产品批次长期稳定，避免了手工制造的气孔、变形、开层等不良问题。

Solder pallet material are composite material made of glass fiber and epoxy resin.In the indirect high temperature environment of 260-280℃, it has good dimensional stability, corrosion resistance, low thermal conductivity, anti-static and non-flammability. Suitable for soldering protection in SMT wave soldering process, easy to process, no cracking, no peeling, no burr and no irritation to human body.Easy to process on CNC lathe and do less harm to the cutters.We have the unique automatic production line in China,therefore steady production can be assured,that can also avoid problems like porosity ,transformation and layer separation. All these problems are easily seen in handmade production.

我们的材料具有一些特性：

These materials offer the following features:

（1）抗腐蚀性：源于技术研发设计的优势，合成石耐腐蚀性在中国制造同类产品中名列前茅，有效延长了载具的使用寿命。

（2）加工后毛刺极少，制品细腻，加工细节部位不易分层断裂，加工时人身无刺痒感：

（3）ESD均匀稳定，板面无气孔、杂质，纤维分布均匀细腻。

（1）Corrosion Resistance：Based on our own intellectual property and R&D Capability.Our composite sheets have great advantage over that of other domestic producers. The carrier life has been prolonged effectively.

（2）Less Burr after machining，not easy to be separated and break on the processing position.

（3）Uniform ESD,No porosity,No impurity,Uniform fiber distribution.

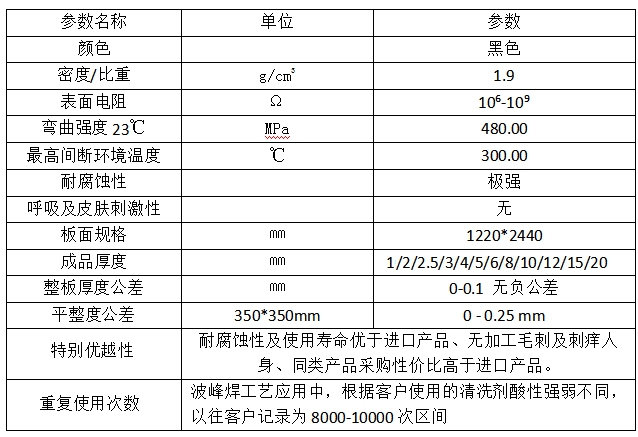

产品技术性能参数：
