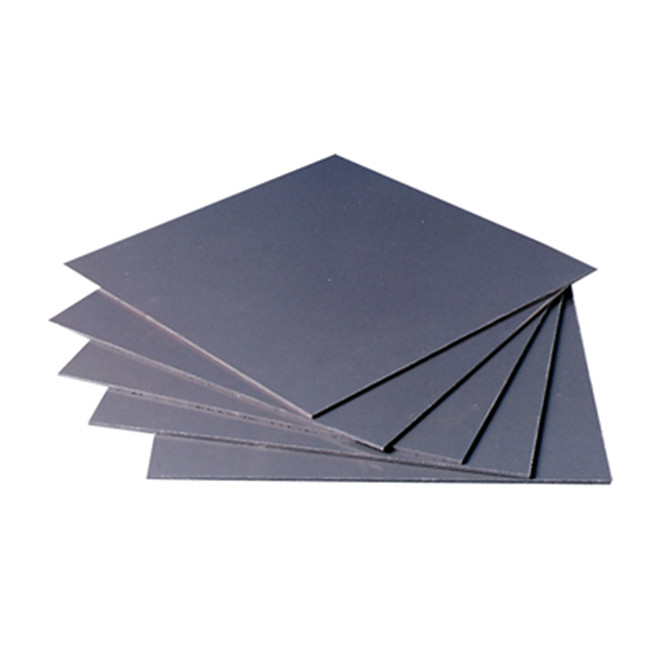

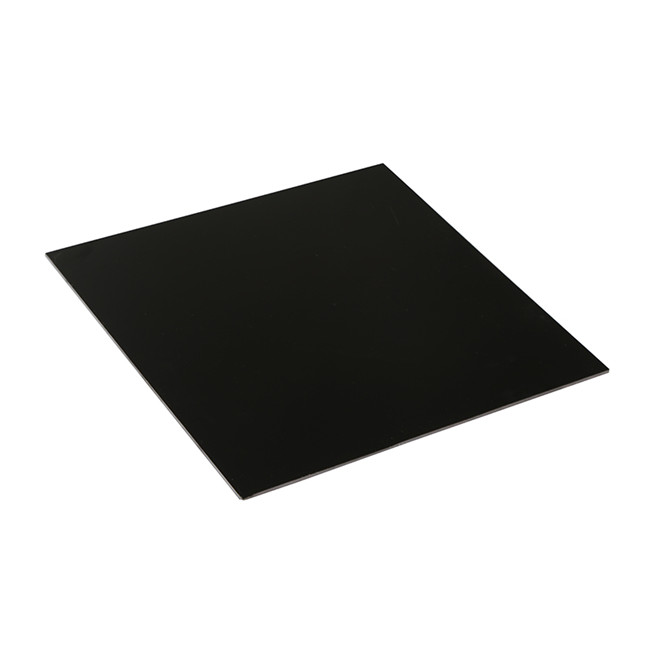

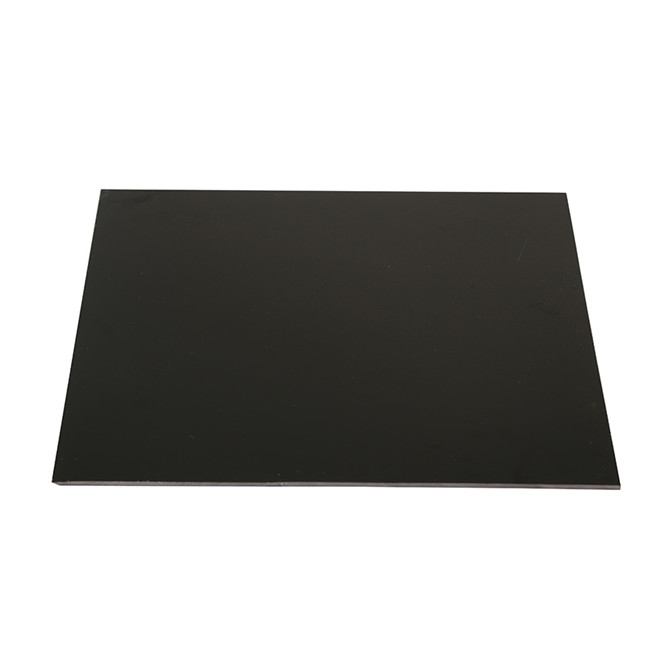

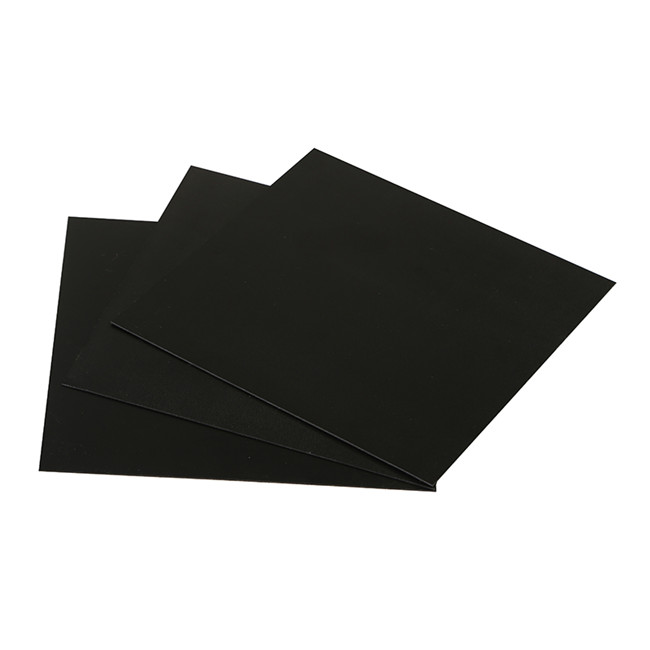

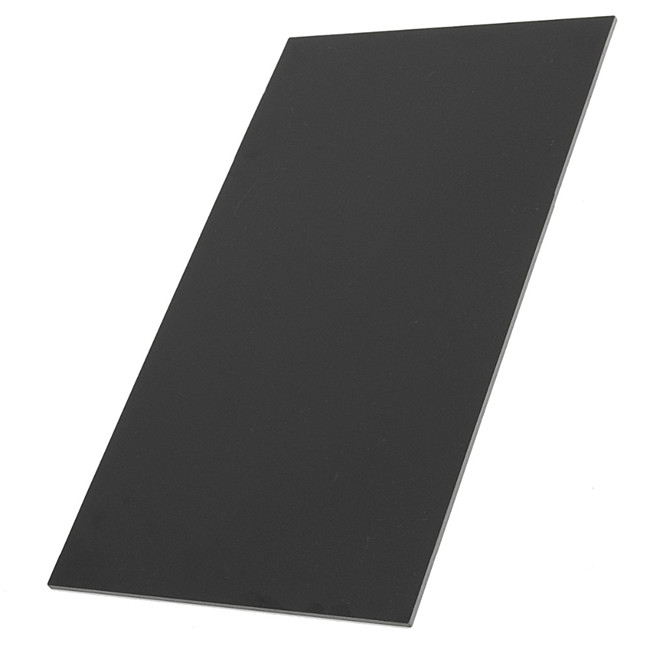

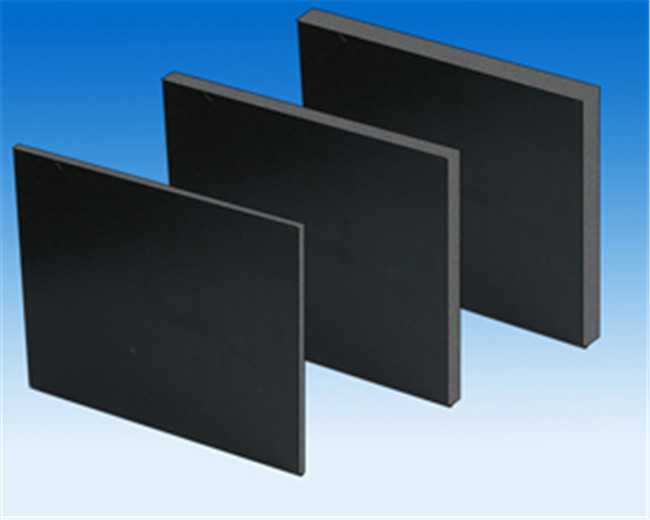

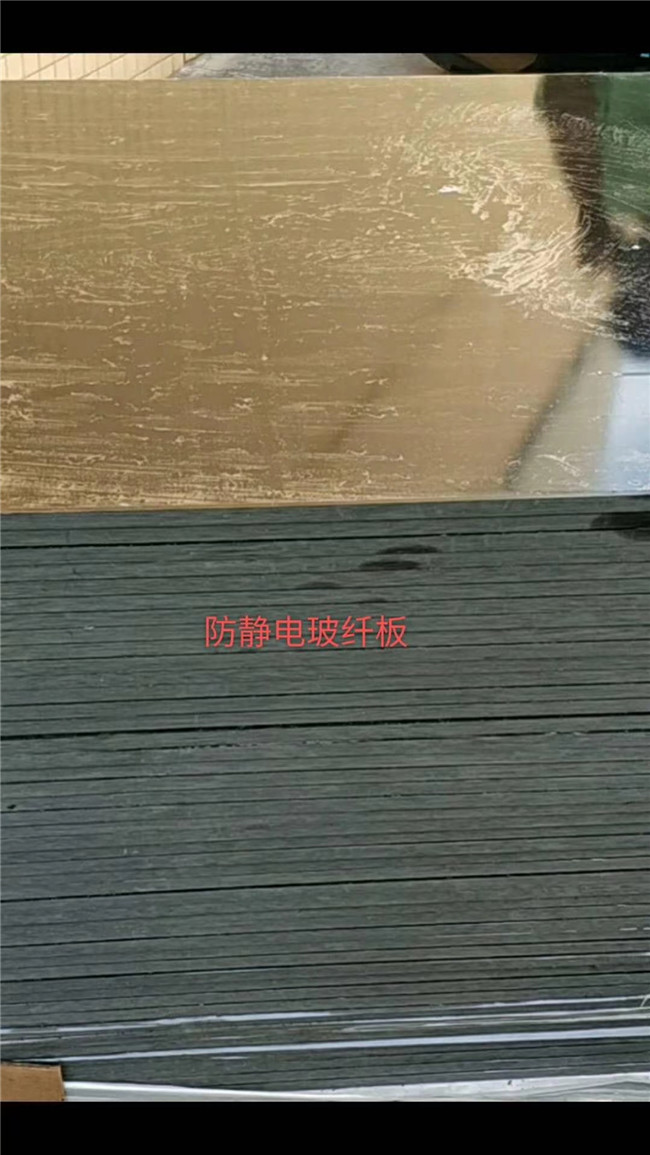

ESD FR4/G10

-Excellent mechnical strength
-10^6~10^9 surface resistivity
-High temperature resistant
-Good size stability
-Good ablity against acid ,alkali and solvent
-Hard and durable
-Good adhesive properties in the surface
-Waterproof

Size(WidthxLength): 1020*1220mm 1220*2040mm

Thickness: 1,1.5,2,3,4,5,6,8,10,12,15,20,25,30mm

This product is a kind of laminated board formed through heat pressing after the electric industry glass fiber cloth dips into epoxy resin. It is suitable as the mechanical, electric and electronic insulation structural components which are used under room and middle temperatures with a certain mechanical performance and electric performance requirement.

We have three types of ESD fiberglass sheet. Customer can choose the most suitable type according to different applications.

1.Single side ESD: 0.5mm ESD layer on one side, the other side is non-ESD.

2.Double side ESD: 0.5mm ESD layer on two sides,the middle part is non-ESD.

3.100% full ESD: anti-static on each layer of the sheet.
